Product Introduction

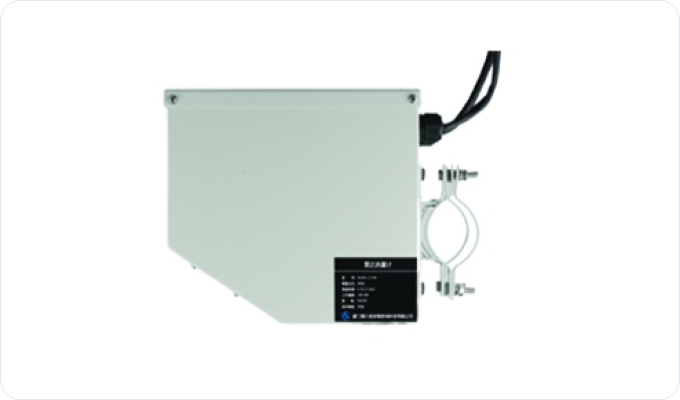

A radar current meter is a non-contact flow velocity detection device used to monitor surface flow velocity in natural rivers, open channels, underground pipe networks, and other water bodies, and to assist in water treatment operations.This radar current meter operates in the 24GHz ISM band using CW mode, enabling real-time, all-weather detection of water flow velocity information, unaffected by climate, temperature, surface water vapor, or pollutants in the water. The product incorporates a highly efficient back-end processing algorithm to accurately determine water flow velocity.
The selection of the test section is directly related to the accuracy of the flow measurement. To obtain better results, the test section should ideally meet the following conditions:
The test section should be free of large boulders obstructing the water flow, and free of large eddies, turbulent flows, or other disturbances.
The test section should have smooth flow, with minimal velocity variations, and be straight.
Product Specifications
| Item | Parameters |
| Effective Range | 0.5 – 30m |
| Velocity Range | 0.15 – 15m/s |
| Resolution | 0.01 m/s |
Application Scenarios
